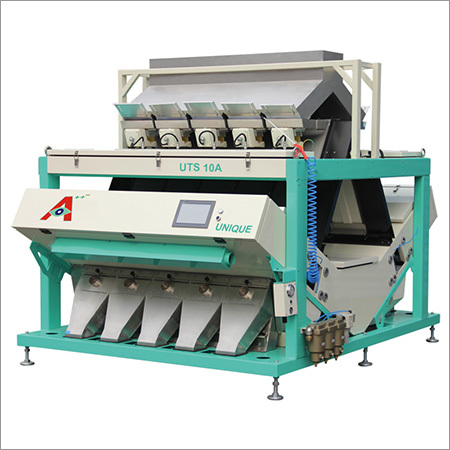

Grain Color Sorter

Grain Color Sorter
Grain Color Sorter
Product Code : 03
Product Description

Based on the skills of our adroit professionals and creative workers, we are trading and supplying an extensive range of Grain Color Sorter. Provided sorter is used for cleaning grain by removing ergot and husks. A skill professional’s team of our vendors’ manufactures the offered sorter using supreme quality components and modish technology. Owing to features like durability, robust construction, easy to install, user friendly design and high efficient, this is demanded in the market. The offered Grain Color Sorter is available with us in various specifications at nominal price.

CCD image acquisition system for high resolution and color image
Using this system, information of blue, green and red color can be acquired.

With sensory ability of human eye, it makes best selection of materials and satisfies the requirements better;
Up to 0.15mm resolution foraccurately identifying smallest defects and spots on raw material, and the special lens for crystal clear images.

Dedicated image processing algorithm
Based on the material's characteristics, the shape and color combination algorithm is to be used.
Machine employs HSV-Changed color space storing method in order to sort material with complex colors directly and accurately.

Configuration of variable and flexible light source
Led lighting system with radiato, longer service life, energy efficient, excellent performance.
Varied raw material need varied spectra, the light source can be customized based on the need of customer.

Unique trough configuration
Special anodizing technology for production volume and conformity with the international standard.
Cascade plate and narrow chute channel can be integrated in the machine for the color sorting for various materials.

High rejection rate (with a ratio)
Advanced image acquisition system, image processing algorithms and nozzle system assured high elimination rate

High-quality and high frequency Ejector
The long service life ejector, with less air consumption guaranteed the biggest capacity.
For the varied material particle's sizes and characteristics, solenoid valve of different sizes is to be used.

Simple operation, easy to learn and operate
Machine is simple to operate for its following features:
Simple optical system design
Precise automatic correction system
Well-designed human-machine interface


Specifications

Model

6SXZ-126

6SXZ-189

6SXZ-252

6SXZ-315

6SXZ-84

6SXZ-126

6SXZ-168

6SXZ-210

Product Output (t/h)

0.5~2.5

1.0~4.0

1.5~5.0

2.0~6.0

Sorting Accuracy (%)

99.9

99.9

99.9

99.9

Optimized Carryover (Bad:Good)

8:1

8:1

8:1

8:1

Weight (kg)

617

748

890

1043

Resolution (mm2)

0.04

0.04

0.04

0.04

Power (kw)

1.4

1.8

2.2

2.6

DimensionLWH(mm)

133716362070

165116362070

196516362070

227916362070

Power Supply (V/Hz)

220/50(110/60)

220/50(110/60)

220/50(110/60)

220/50(110/60)


Model

6SXZ-378

6SXZ-441

6SXZ-630

6SXZ-750

6SXZ-252

6SXZ-294

6SXZ-420

6SXZ-504

Product Output (t/h)

2.5~7.0

3.0~8.0

3.5~9.0

4.0~10.0

Sorting Accuracy (%)

99.9

99.9

99.9

99.9

Optimized Carryover (Bad:Good)

8:1

8:1

8:1

8:1

Weight (kg)

1170

1281

1792

2134

Resolution (mm2)

0.04

0.04

0.04

0.04

Power (kw)

3.0

4.5

6.0

8.0

DimensionLWH(mm)

259316362070

297615091945

227428242190

255028242024

Power Supply (V/Hz)

220/50(110/60)

220/50(110/60)

220/50(110/60)

220/50(110/60)
